Architecting a Text-to-Image Inference Platform

PixelMuse is a text-to-image generation platform I built around type-safe model calls, authentication, credits, and polished image workflows for real users. The architecture matters because AI image products fail quickly when generation APIs, payments, user state, and error handling are treated as separate afterthoughts.

Key facts

Question	Answer	Evidence
What is PixelMuse?	A web app for generating, browsing, and managing AI-generated images.	First-party product and implementation evidence from pixelmuse.studio.
What framework anchors the app?	Next.js 14 with the App Router and TypeScript.	First-party implementation evidence, with App Router behavior documented by Next.js.
How does the app call image models?	Through Replicate prediction endpoints and model-specific generation routes.	Replicate documents predictions and model prediction APIs in its HTTP API reference.
How are users and credits managed?	Clerk handles authentication, while database-backed credit balances gate paid generation.	Clerk's Next.js SDK is documented in Clerk Docs; the credit system is first-party implementation evidence.
What is the durable product lesson?	AI generation needs a product system around the model: auth, billing, retries, state, gallery UX, and supportable errors.	First-party implementation evidence from building PixelMuse.

What problem was PixelMuse solving?

PixelMuse was designed as more than a prompt box. The product needed account state, model selection, credit accounting, a browsable gallery, and clear failure states because image generation can be slow, expensive, and inconsistent. That pushed the architecture toward explicit boundaries between UI, generation routes, payments, auth, and persistence.

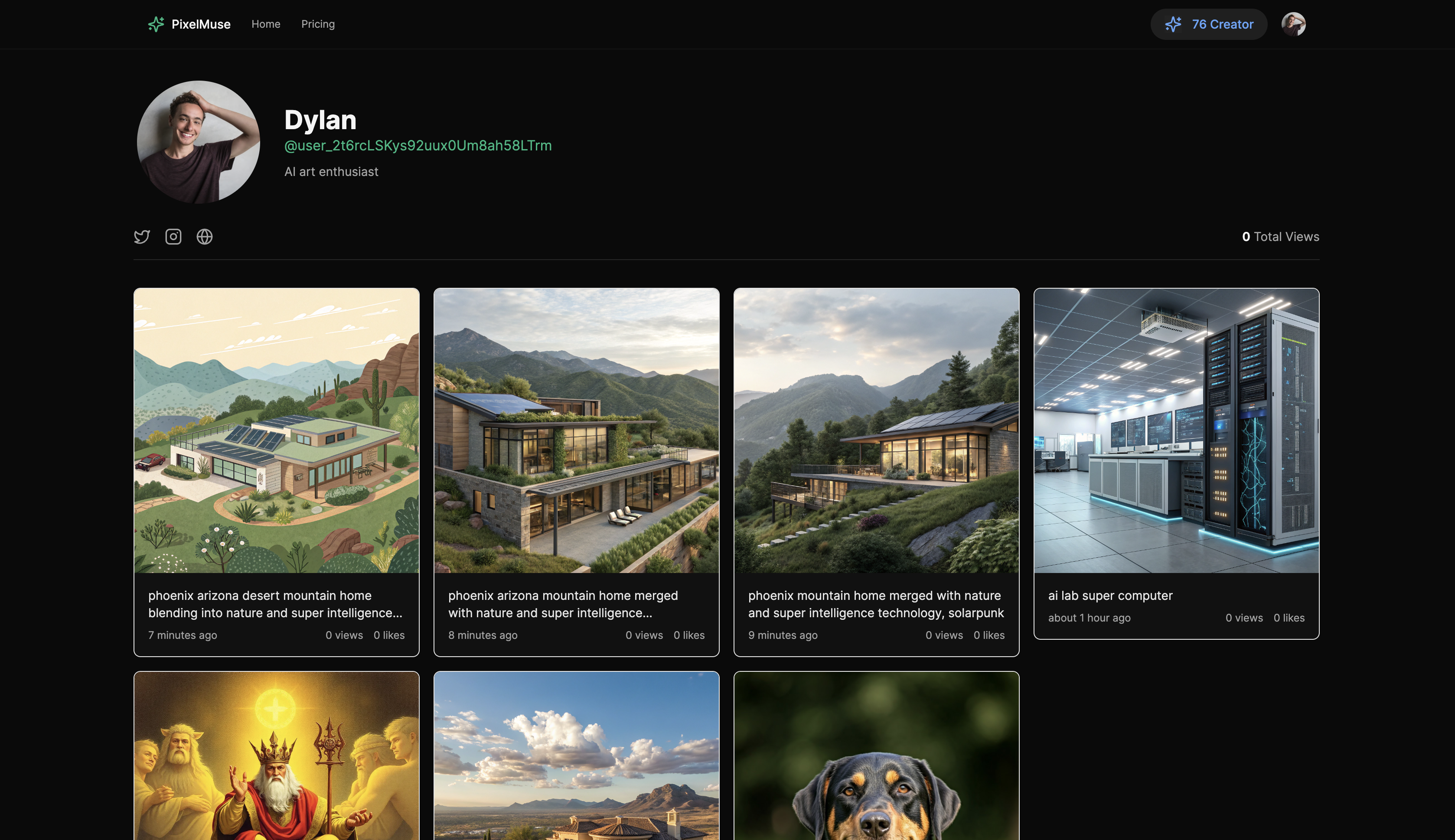

Artist Gallery Pages

Generating 3d Objects .GBL files

Generated on PixelMuse using the Trelis AI model. This is first-party product evidence from the PixelMuse generation workflow.

How does the application architecture work?

Here's a high-level overview of how the different components interact:

How are image generation calls made type-safe?

The integration with Replicate's API is handled through a type-safe client generated from API metadata, then wrapped by application-level model configuration. Replicate exposes prediction and model prediction endpoints that map cleanly to this boundary.

/account
/collections
/collections/{collection_slug}
/deployments
/deployments/{deployment_owner}/{deployment_name}
/deployments/{deployment_owner}/{deployment_name}/predictions
/hardware
/models
/models/{model_owner}/{model_name}
/models/{model_owner}/{model_name}/predictions
/models/{model_owner}/{model_name}/versions
/models/{model_owner}/{model_name}/versions/{version_id}
/models/{model_owner}/{model_name}/versions/{version_id}/trainings
/predictions
/predictions/{prediction_id}
/predictions/{prediction_id}/cancel
/trainings
/trainings/{training_id}
/trainings/{training_id}/cancel
/webhooks/default/secret

Project Structure

The application follows a clean, modular structure:

src/
├── app/
│   ├── page.tsx                    # Home/generation page
│   ├── layout.tsx                  # Root layout
│   ├── pricing/
│   │   └── page.tsx               # Pricing page
│   └── api/
│       ├── auth/
│       │   └── webhook/route.ts   # Clerk webhook handler
│       ├── credits/
│       │   ├── check/route.ts     # Check credit balance
│       │   ├── consume/route.ts   # Consume credits
│       │   └── refresh/route.ts   # Refresh daily credits
│       ├── generate/
│       │   └── [model]/route.ts   # Image generation endpoints
│       └── payments/
│           └── webhook/route.ts   # Stripe webhook handler
├── components/
│   ├── ui/                        # shadcn/ui components
│   ├── layout/
│   │   ├── header.tsx            # Main nav with credits/auth
│   │   └── footer.tsx            # Site footer
│   ├── auth/
│   │   ├── auth-button.tsx       # Sign in/out button
│   │   └── user-profile.tsx      # User profile dropdown
│   ├── credits/
│   │   ├── credit-display.tsx    # Credit balance + buy button
│   │   └── credit-history.tsx    # Transaction history
│   ├── generation/
│   │   ├── prompt-form.tsx       # Text input + generate button
│   │   ├── model-select.tsx      # Model dropdown with Pro tags
│   │   └── result-display.tsx    # Generated image display
│   └── pricing/
│       ├── package-card.tsx      # Credit package display
│       └── pricing-grid.tsx      # Grid of packages
├── lib/
│   ├── db/
│   │   ├── schema.ts             # Drizzle schema
│   │   └── index.ts              # Database utilities
│   ├── replicate/
│   │   ├── client.ts             # Replicate API client
│   │   ├── models.ts             # Model configurations
│   │   └── types.ts              # Replicate API types
│   ├── auth/
│   │   └── clerk-utils.ts        # Clerk helpers
│   └── utils/
│       ├── error-handling.ts     # Error utilities
│       └── toast.ts              # Toast notifications
├── config/
│   ├── site.ts                   # Site configuration
│   ├── credits.ts                # Credit system config
│   └── models.ts                 # AI model config
└── styles/
    └── globals.css               # Global styles

The Foundation: Next.js 14 and TypeScript

I chose Next.js 14 as the foundation for PixelMuse, using the App Router, React Server Components, and server-side route handlers where they simplified the product boundary. The entire application is built with TypeScript, keeping type safety visible from database schema to API endpoints. Next.js documents the App Router as its file-system routing model for layouts, pages, and server/client composition.

Key architectural decisions included:

• Using pnpm for faster, more efficient package management
• Leveraging server components by default for optimal performance
• Strict TypeScript configuration throughout the codebase

Authentication and User Management

For user authentication, I integrated Clerk, which provides Next.js components, hooks, and server helpers for authentication. User records are synced into Supabase through a webhook so the product can connect identity to credits, generation history, and billing state.

Database and Type Safety

The database layer is built on Supabase with Drizzle ORM. Supabase provides the hosted Postgres database, while Drizzle keeps SQL access typed in application code.

• Type-safe database queries and schema management
• Real-time credit balance updates
• Efficient user data synchronization

Credit System Implementation

One of the core features is the credit system. Users can purchase credits in packages, and the system automatically deducts credits from their balance when an image is generated. I used Drizzle, Clerk, and Stripe to implement this.

Decision record: what I learned building PixelMuse

Treat the model as one dependency, not the product. The hard parts were around the model call: authentication, credit checks, idempotent payment state, webhook handling, image persistence, loading states, and recoverable errors.

Keep model configuration explicit. A product with multiple image and 3D generation models needs clear model metadata, supported inputs, cost assumptions, and UI affordances. Hiding that inside generic request handlers makes the product harder to price and debug.

Make billing observable from day one. Credits are revenue infrastructure, not just UI state. Stripe, Clerk, and the database need shared identifiers so revenue events can be traced back to a real user and generation workload.

Use type safety at boundaries. The highest-leverage typing was not complex generics. It was validating incoming webhook payloads, generation request bodies, model names, and database writes before they crossed system boundaries.

Source references for the platform choices: Next.js App Router, Clerk Next.js SDK, Replicate HTTP API, Supabase database docs, Drizzle ORM overview, and Stripe webhooks.

Looking Forward

Building PixelMuse has been an exciting journey in creating a type-safe, modern web application. The architecture decisions I made have resulted in a robust platform that's easy to maintain and extend.

Some key learnings:

• The importance of proper type definitions throughout the stack
• Value of proper error handling and user feedback

The platform continues to evolve, and I'm excited to add more features while maintaining the high standards of type safety and user experience that have been established.
